St. David’s Church, Radnor
Wayne, Pennsylvania

Opus 84, 2007

GREAT - II
16'		Principal
8'		Principal
8'		Hohl Flute
8'		Gamba
4'		Octave
4'		Spire Flute
2-2/3'		Twelfth
2'		Fifteenth
1-3/5'		Seventeenth
IV		Mixture 2'
8'		Trumpet
4'		Clarion
		Swell to Great
		Choir to Great
SWELL - III (expressive)
8'		Diapason
8'		Bourdon
8'		Viola
8'		Voix Celeste (CC)
4'		Octave
4'		Harmonic Flute
2-2/3'		Nasard
2'		Piccolo
1-3/5'		Tierce
III		Mixture 2'
16'		Bassoon
8'		Trumpet
8'		Oboe
4'		Clarion
		Tremulant
CHOIR - I (expressive)
16'		Bourdon
8'		Salicional
8'		Gemshorn
8'		Unda Maris (GG)
8'		Lieblich Gedeckt
4'		Fugara
4'		Recorder
2'		Flageolet
8'		Trumpet
8'		Clarinet
8'		Vox Humana
		Tremulant
		Swell to Choir
PEDAL
32'		Contra Bourdon
16'		Principal (Great)
16'		Violone
16'		Subbass (ext. Contra Bourdon)
16'		Bourdon (Choir)
8'		Octave
8'		Violoncello (ext. Violone)
8'		Gedeckt (ext. Contra Bourdon)
4'		Choralbass
16'		Trombone
8'		Trumpet (Great)
4'		Clarion (Great)
		Great to Pedal
		Swell to Pedal
		Choir to Pedal

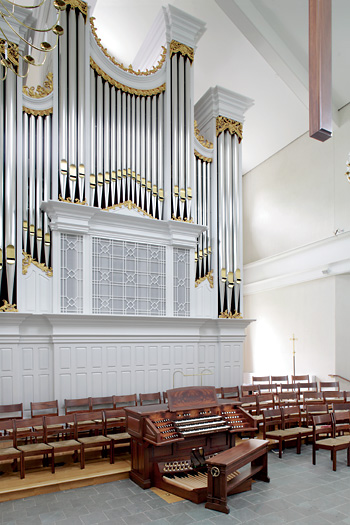

Detached console with drawknobs in angled terraces
Mechanical key action, electric stop action
128 level combination action

Photographs on this page courtesy of William T. Van Pelt.
